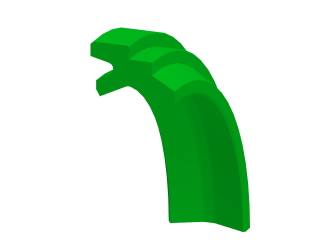

HW003
Wiper
HW003 TYPE wiper is a sealing element which used in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.
Standardized with the materials of high performance PU 93 shore A.
Technical Data:
Temperature: -35 to +100
Speed: 1m/s
Media: Hydraulic oils (mineral oil-based)
Material:
Material: PU
Hardness: 93 2 Shore A
Color: Blue
Advantages:
High abrasion resistance.
Widely applicable.
Easy installation.
| Sr.No. | Item Description | ID (mm) | OD (mm) | H (mm) |
|---|---|---|---|---|
| HW003 | 16 | 24 | 4/6/8 | |
| HW003 | 18 | 26 | 4/6/8 | |
| HW003 | 20 | 28 | 4/6/8 | |
| HW003 | 22 | 30 | 4/6/8 | |
| HW003 | 25 | 33 | 4/6/8 | |
| HW003 | 28 | 36 | 4/6/8 | |
| HW003 | 30 | 38 | 4/6/8 | |
| HW003 | 32 | 40 | 4/6/8 | |
| HW003 | 35 | 43 | 4/6/8 | |
| HW003 | 36 | 44 | 4/6/8 | |
| HW003 | 38 | 46 | 4/6/8 | |
| HW003 | 40 | 48 | 4/6/8 | |
| HW003 | 45 | 53 | 4/6/8 | |
| HW003 | 50 | 58 | 4/6/8 | |
| HW003 | 55 | 63 | 4/6/8 | |
| HW003 | 56 | 64 | 4/6/8 | |
| HW003 | 60 | 68 | 4/6/8 | |
| HW003 | 63 | 71 | 4/6/8 | |
| HW003 | 65 | 73 | 4/6/8 | |
| HW003 | 70 | 78 | 4/6/8 | |
| HW003 | 75 | 83 | 4/6/8 | |
| HW003 | 80 | 88 | 4/6/8 | |
| HW003 | 85 | 93 | 4/6/8 | |
| HW003 | 90 | 98 | 4/6/8 | |
| HW003 | 100 | 108 | 4/6/8 |
