HW005
Wiper

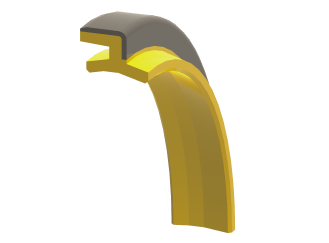

DKBI is a wiper with a metal framework which usd in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A and Metal case.
Standardized with the materials of high performance PU 93 shore A and Metal case.
Technical Data
Temperature: -35°c to +100°c
Speed:
1m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: PU Framework: Metal
Hardness: 93
2 Shore A
Color: Blue / Green / Light yellow
Advantages
High abrasion resistance.
Widely applicable.
Easy installation.
| Sr. No. | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| 1 | HW005 | 14 | 24 | 5/7 | 14X24X5/7 |
| 2 | HW005 | 18 | 30 | 6/9 | 18X30X6/9 |
| 3 | HW005 | 19 | 26 | 5/7 | 19X26X5/7 |
| 4 | HW005 | 20 | 32 | 6/9 | 20X32X6/9 |
| 5 | HW005 | 22 | 34 | 6/9 | 22X34X6/9 |
| 6 | HW005 | 25 | 37 | 6/9 | 25X37X6/9 |
| 7 | HW005 | 28 | 42 | 6/9 | 28X42X6/9 |
| 8 | HW005 | 30 | 42 | 6/9 | 30X42X6/9 |
| 9 | HW005 | 32 | 44 | 7/10 | 32X44X7/10 |
| 10 | HW005 | 32 | 52 | 8/11 | 32X52X8/11 |
| 11 | HW005 | 35 | 47 | 7/10 | 35X47X7/10 |
| 12 | HW005 | 40 | 52 | 7/10 | 40X52X7/10 |
| 13 | HW005 | 45 | 57 | 7/10 | 45X57X7/10 |
| 14 | HW005 | 50 | 62 | 7/10 | 50X62X7/10 |
| 15 | HW005 | 55 | 69 | 8/11 | 55X69X8/11 |
| 16 | HW005 | 60 | 74 | 8/11 | 60X74X8/11 |
| 17 | HW005 | 63 | 77 | 8/11 | 63X77X8/11 |
| 18 | HW005 | 65 | 79 | 8/11 | 65X79X8/11 |
| 19 | HW005 | 70 | 84 | 8/11 | 70X84X8/11 |
| 20 | HW005 | 75 | 89 | 8/11 | 75X89X8/11 |
| 21 | HW005 | 80 | 94 | 8/11 | 80X94X8/11 |
| 22 | HW005 | 85 | 99 | 8/11 | 85X99X8/11 |
| 23 | HW005 | 90 | 104 | 8/11 | 90X104X8/11 |
| 24 | HW005 | 95 | 109 | 8/11 | 95X109X8/11 |
| 25 | HW005 | 100 | 114 | 8/11 | 100X114X8/11 |
| 26 | HW005 | 105 | 121 | 9/12 | 105X121X9/12 |
| 27 | HW005 | 110 | 126 | 9/12 | 110X126X9/12 |
| 28 | HW005 | 115 | 131 | 9/12 | 115X131X9/12 |
| 29 | HW005 | 120 | 136 | 9/12 | 120X136X9/12 |
| 30 | HW005 | 130 | 146 | 9/12 | 130X146X9/12 |
| 31 | HW005 | 140 | 160 | 10/14 | 140X160X10/14 |
| 32 | HW005 | 150 | 170 | 10/14 | 150X170X10/14 |
| 33 | HW005 | 190 | 210 | 10/14 | 190X210X10/14 |
