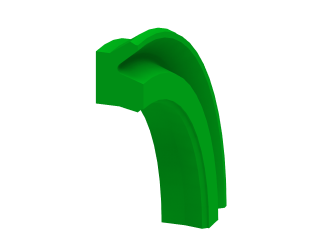

HZ8
Pneumatic Seal
Designed specially for the cases necessary for sealing of very small areas in short stroke pneumatic cylinders, our Z8 type seals provide maximum sealing with its small housing
measures and minumum friction force.
Technical Data
Temperature: -35°c to +80°c
Speed:
1m/s
Media: Air (Lubrication free, pressurized dry air)
Material
Material: PU
Hardness: 70
3 Shore A
Color: Turquoise
Advantages
Good sealing performance in small installation grooves
Low static and dynamic friction
High functional reliability due to lip seal design.
Also suitable for cylinders with cushioning
| Sr. No | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HZ8 | 16 | 10 | 2.55 | 16x10x2.55 | |
| HZ8 | 20 | 14 | 2.55 | 20x14x2.55 | |
| HZ8 | 22 | 16 | 2.55 | 22x16x2.55 | |
| HZ8 | 28 | 22 | 3.25 | 28x22x3.25 | |
| HZ8 | 30 | 22 | 3.25 | 30x22x3.25 | |
| HZ8 | 32 | 24 | 3.25 | 32x24x3.25 | |
| HZ8 | 37 | 29 | 3.25 | 37x29x3.25 | |
| HZ8 | 40 | 32 | 3.25 | 40x32x3.25 | |
| HZ8 | 50 | 42 | 3.25 | 50x42x3.25 | |
| HZ8 | 63 | 53 | 4.25 | 63x53x4.25 | |
| HZ8 | 80 | 70 | 4.25 | 80x70x4.25 | |
| HZ8 | 90 | 80 | 4.25 | 90x80x4.25 | |
| HZ8 | 100 | 90 | 4.25 | 100x90x4.25 | |
| HZ8 | 200 | 180 | 8.25 | 200x180x8.25 |
