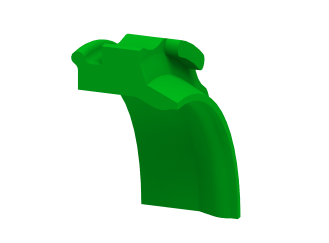

HPP
Pneumatic Seal
Produced by injection moulding techinique from PU material, our PP can be used safely in the applications requiring cushioning seals in pneumatic cylinders.
Technical Data
Temperature: -35°c to +80°c
Speed:
1m/s
Media: Air (Lubrication free, pressurized dry air)
Material
Material: PU
Hardness: 90
2 Shore A
Color: Turquoise
Advantages
Optimum use of design-related cushion travel
High cushioning consistency due to automatic centering, enen in the case of misalignment
of the cushioning spear to the cylinder head
| Sr.No | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HPP | 12 | 20 | 5.5 | 12x20x5.5 | |
| HPP | 14 | 22 | 7.8 | 14x22x7.8 | |
| HPP | 15 | 22 | 6 | 15x22x6 | |
| HPP | 16 | 22 | 5.5 | 16x22x5.5 | |
| HPP | 16 | 24 | 7.8 | 16x24x7.8 | |
| HPP | 16 | 24.7 | 7.8 | 16x24.7x7.8 | |
| HPP | 20 | 28 | 7.8 | 20x28x7.8 | |
| HPP | 22 | 30 | 7.8 | 22x30x7.8 | |
| HPP | 25 | 33 | 7.8 | 25x33x7.8 | |
| HPP | 27 | 36 | 7.8 | 27x36x7.8 | |
| HPP | 28 | 36 | 7.8 | 28x36x7.8 | |
| HPP | 30 | 38 | 7.8 | 30x38x7.8 | |
| HPP | 30 | 40 | 7.8 | 30x40x7.8 | |
| HPP | 32 | 42 | 7.8 | 32x42x7.8 | |
| HPP | 36 | 46 | 7.8 | 36x46x7.8 | |
| HPP | 40 | 50 | 7.8 | 40x50x7.8 | |
| HPP | 50 | 60 | 7.8 | 50x60x7.8 |
