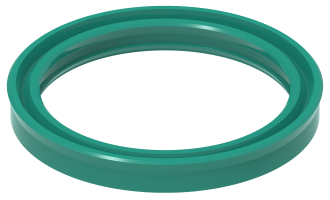

HR002
Rod Seal

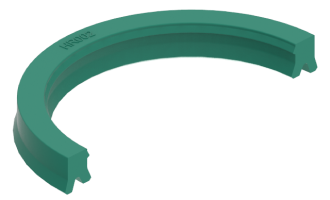

HR002 is a sealing element used safely in rod applications and produced with high performance 93 Shore A PU material. Supported by another sealing lip in the side from which dynamic pressure comes, this R2 PU nutring is made in such a way that is operates well in every hydraulic applications.
Technical Data
Pressure:
400 Bar
Temperature: -35°c to +100°c
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: PU
Hardness: 93
2 Shore A
Color: Blue
Advantages
Insensibility against shock loads and pressure peaks
High resistance against extrusion
Sufficient lubrication due to pressure medium between the sealing lips
Suitable for hardest working conditions
Easy installation
Hallite 605 standard
Other sizes are in developing, all standard sizes are available
| Sr no | Item Description | ID | OD | Width | Groove Width |
|---|---|---|---|---|---|
| 1 | HR002(Rod Seal) | 12 | 20 | 5.8 | 6.3 |
| 2 | HR002(Rod Seal) | 14 | 22 | 5.7 | 6.3 |
| 3 | HR002(Rod Seal) | 16 | 22 | 5.8 | 6.3 |
| 4 | HR002(Rod Seal) | 16 | 24 | 5.8 | 6.3 |
| 5 | HR002(Rod Seal) | 18 | 26 | 5 | 6 |
| 6 | HR002(Rod Seal) | 20 | 30 | 10 | 11 |
| 7 | HR002(Rod Seal) | 20 | 28 | 5.7 | 6.3 |
| 8 | HR002(Rod Seal) | 20 | 30 | 7.3 | 8 |
| 9 | HR002(Rod Seal) | 20 | 26 | 5 | 6 |
| 10 | HR002(Rod Seal) | 20 | 28 | 5 | 6 |
| 11 | HR002(Rod Seal) | 20 | 30 | 6 | 7 |
| 12 | HR002(Rod Seal) | 22 | 30 | 5 | 6 |
| 13 | HR002(Rod Seal) | 22 | 30 | 7 | 8 |
| 14 | HR002(Rod Seal) | 22 | 30 | 5.7 | 6.3 |
| 15 | HR002(Rod Seal) | 22 | 32 | 7.3 | 8 |
| 16 | HR002(Rod Seal) | 22.4 | 30 | 5 | 6 |
| 17 | HR002(Rod Seal) | 25 | 33 | 8 | 9 |
| 18 | HR002(Rod Seal) | 25 | 33 | 5.7 | 6.3 |
| 19 | HR002(Rod Seal) | 25 | 33 | 5 | 6 |
| 20 | HR002(Rod Seal) | 25 | 33 | 6 | 7 |
| 21 | HR002(Rod Seal) | 25 | 35 | 7.3 | 8 |
| 22 | HR002(Rod Seal) | 25 | 35 | 6 | 7 |
| 23 | HR002(Rod Seal) | 28 | 36 | 5.7 | 6.3 |
| 24 | HR002(Rod Seal) | 28 | 36 | 6 | 7 |
| 25 | HR002(Rod Seal) | 28 | 36 | 8 | 9 |
| 26 | HR002(Rod Seal) | 28 | 38 | 5.7 | 6.3 |
| 27 | HR002(Rod Seal) | 28 | 38 | 7.3 | 8 |
| 28 | HR002(Rod Seal) | 30 | 38 | 6 | 7 |
| 29 | HR002(Rod Seal) | 30 | 38 | 6.3 | |
| 30 | HR002(Rod Seal) | 30 | 38 | 5.7 | 6.3 |
| 31 | HR002(Rod Seal) | 30 | 40 | 10 | 11 |
| 32 | HR002(Rod Seal) | 30 | 40 | 7.3 | 8 |
| 33 | HR002(Rod Seal) | 30 | 40 | 6 | 7 |
| 34 | HR002(Rod Seal) | 30 | 45 | 10 | 11 |
| 35 | HR002(Rod Seal) | 30 | 50 | 9 | 10 |
| 36 | HR002(Rod Seal) | 32 | 42 | 7.3 | 8 |
| 37 | HR002(Rod Seal) | 32 | 42 | 6 | 7 |
| 38 | HR002(Rod Seal) | 32 | 48 | 10 | 11 |
| 39 | HR002(Rod Seal) | 35 | 42 | 6 | 7 |
| 40 | HR002(Rod Seal) | 35 | 43 | 5.7 | 6.3 |
| 41 | HR002(Rod Seal) | 35 | 45 | 10 | 11 |
| 42 | HR002(Rod Seal) | 35 | 45 | 7.3 | 8 |
| 43 | HR002(Rod Seal) | 35 | 45 | 6 | 7 |
| 44 | HR002(Rod Seal) | 35 | 50 | 10 | 11 |
| 45 | HR002(Rod Seal) | 35 | 50 | 9 | 10 |
| 46 | HR002(Rod Seal) | 35.5 | 50.5 | 10 | 11 |
| 47 | HR002(Rod Seal) | 36 | 44 | 5.7 | 6.3 |
| 48 | HR002(Rod Seal) | 36 | 46 | 7.3 | 8 |
| 49 | HR002(Rod Seal) | 36 | 46 | 10 | 11 |
| 50 | HR002(Rod Seal) | 38 | 48 | 10 | |
| 51 | HR002(Rod Seal) | 40 | 48 | 6 | 7 |
| 52 | HR002(Rod Seal) | 40 | 48 | 10 | 11 |
| 53 | HR002(Rod Seal) | 40 | 50 | 6 | 7 |
| 54 | HR002(Rod Seal) | 40 | 50 | 7.3 | 8 |
| 55 | HR002(Rod Seal) | 40 | 50 | 8 | 9 |
| 56 | HR002(Rod Seal) | 40 | 50 | 10 | 11 |
| 57 | HR002(Rod Seal) | 40 | 55 | 9 | 10 |
| 58 | HR002(Rod Seal) | 40 | 55 | 10 | 11 |
| 59 | HR002(Rod Seal) | 45 | 53 | 5.8 | 6.3 |
| 60 | HR002(Rod Seal) | 45 | 53 | 6 | 7 |
| 61 | HR002(Rod Seal) | 45 | 53 | 8 | 9 |
| 62 | HR002(Rod Seal) | 45 | 55 | 5.8 | 6.3 |
| 63 | HR002(Rod Seal) | 45 | 55 | 6 | 7 |
| 64 | HR002(Rod Seal) | 45 | 55 | 7 | 8 |
| 65 | HR002(Rod Seal) | 45 | 55 | 7.3 | 8 |
| 66 | HR002(Rod Seal) | 45 | 55 | 8 | 9 |
| 67 | HR002(Rod Seal) | 45 | 55 | 10 | 11 |
| 68 | HR002(Rod Seal) | 45 | 60 | 10 | 11 |
| 69 | HR002(Rod Seal) | 45 | 60 | 11.4 | 12.5 |
| 70 | HR002(Rod Seal) | 50 | 58 | 7.3 | 8 |
| 71 | HR002(Rod Seal) | 50 | 58 | 8 | 9 |
| 72 | HR002(Rod Seal) | 50 | 60 | 6 | 7 |
| 73 | HR002(Rod Seal) | 50 | 60 | 7 | 8 |
| 74 | HR002(Rod Seal) | 50 | 60 | 7.3 | 8 |
| 75 | HR002(Rod Seal) | 50 | 60 | 10 | 11 |
| 76 | HR002(Rod Seal) | 50 | 63 | 10 | 11 |
| 77 | HR002(Rod Seal) | 50 | 65 | 9 | 10 |
| 78 | HR002(Rod Seal) | 50 | 65 | 10 | 11 |
| 79 | HR002(Rod Seal) | 50 | 65 | 11.5 | 12.5 |
| 80 | HR002(Rod Seal) | 50 | 70 | 12 | 13 |
| 81 | HR002(Rod Seal) | 52 | 62 | 10 | 11 |
| 82 | HR002(Rod Seal) | 53 | 63 | 6 | 7 |
| 83 | HR002(Rod Seal) | 55 | 65 | 6 | 7 |
| 84 | HR002(Rod Seal) | 55 | 65 | 7.3 | 8 |
| 85 | HR002(Rod Seal) | 55 | 65 | 10 | 11 |
| 86 | HR002(Rod Seal) | 55 | 65 | 11.8 | 12.8 |
| 87 | HR002(Rod Seal) | 55 | 68 | 10 | 11 |
| 89 | HR002(Rod Seal) | 55 | 70 | 10 | 11 |
| 90 | HR002(Rod Seal) | 55 | 70 | 11.8 | 12.8 |
| 91 | HR002(Rod Seal) | 55 | 75 | 12 | 13 |
| 92 | HR002(Rod Seal) | 56 | 66 | 6 | 7 |
| 93 | HR002(Rod Seal) | 56 | 66 | 7.3 | 8 |
| 94 | HR002(Rod Seal) | 56 | 71 | 11.4 | 12.5 |
| 95 | HR002(Rod Seal) | 56 | 76 | 12 | 13 |
| 96 | HR002(Rod Seal) | 58 | 68 | 7.3 | 8 |
| 97 | HR002(Rod Seal) | 60 | 70 | 6 | 7 |
| 98 | HR002(Rod Seal) | 60 | 70 | 7.3 | 8 |
| 99 | HR002(Rod Seal) | 60 | 70 | 10 | 11 |
| 100 | HR002(Rod Seal) | 60 | 70 | 11.5 | |
| 101 | HR002(Rod Seal) | 60 | 70 | 11.8 | 12.8 |
| 102 | HR002(Rod Seal) | 60 | 73 | 10 | 11 |
| 103 | HR002(Rod Seal) | 60 | 75 | 9 | 10 |
| 104 | HR002(Rod Seal) | 60 | 75 | 10 | 11 |
| 105 | HR002(Rod Seal) | 60 | 75 | 11.8 | 12.8 |
| 106 | HR002(Rod Seal) | 60 | 80 | 12 | 13 |
| 107 | HR002(Rod Seal) | 61 | 71 | 6 | 7 |
| 108 | HR002(Rod Seal) | 63 | 73 | 12 | 13 |
| 109 | HR002(Rod Seal) | 63 | 78 | 10 | 11 |
| 110 | HR002(Rod Seal) | 63 | 78 | 11.5 | |
| 111 | HR002(Rod Seal) | 65 | 75 | 6 | 7 |
| 112 | HR002(Rod Seal) | 65 | 75 | 11.8 | 12.8 |
| 113 | HR002(Rod Seal) | 65 | 78 | 10 | 11 |
| 114 | HR002(Rod Seal) | 65 | 80 | 9 | 10 |
| 115 | HR002(Rod Seal) | 65 | 80 | 11.5 | 11.5 |
| 116 | HR002(Rod Seal) | 65 | 80 | 11.8 | 12.8 |
| 1117 | HR002(Rod Seal) | 65 | 85 | 12 | 13 |
| 118 | HR002(Rod Seal) | 67 | 77 | 6 | 7 |
| 119 | HR002(Rod Seal) | 68 | 78 | 7.3 | 8 |
| 120 | HR002(Rod Seal) | 70 | 80 | 6 | 7 |
| 121 | HR002(Rod Seal) | 70 | 80 | 7 | |
| 122 | HR002(Rod Seal) | 70 | 80 | 11.8 | |
| 123 | HR002(Rod Seal) | 70 | 85 | 9 | 10 |
| 124 | HR002(Rod Seal) | 70 | 85 | 10 | |
| 125 | HR002(Rod Seal) | 70 | 85 | 11.4 | 12.5 |
| 126 | HR002(Rod Seal) | 70 | 90 | 12 | 11 |
| 127 | HR002(Rod Seal) | 70 | 90 | 14 | 15 |
| 128 | HR002(Rod Seal) | 75 | 85 | 6 | 7 |
| 129 | HR002(Rod Seal) | 75 | 88 | 10 | 11 |
| 130 | HR002(Rod Seal) | 75 | 90 | 9 | 10 |
| 131 | HR002(Rod Seal) | 75 | 90 | 10 | 11 |
| 132 | HR002(Rod Seal) | 75 | 90 | 11.4 | 12.5 |
| 133 | HR002(Rod Seal) | 75 | 95 | 12 | 13 |
| 134 | HR002(Rod Seal) | 77 | 87 | 12 | 13 |
| 135 | HR002(Rod Seal) | 80 | 90 | 6 | 7 |
| 136 | HR002(Rod Seal) | 80 | 90 | 10 | 11 |
| 137 | HR002(Rod Seal) | 80 | 90 | 11.8 | 12.5 |
| 138 | HR002(Rod Seal) | 80 | 93 | 10 | 11 |
| 139 | HR002(Rod Seal) | 80 | 95 | 9 | 10 |
| 140 | HR002(Rod Seal) | 80 | 95 | 10 | 11 |
| 141 | HR002(Rod Seal) | 80 | 95 | 11.4 | 12.5 |
| 142 | HR002(Rod Seal) | 80 | 95 | 11.8 | 12.5 |
| 143 | HR002(Rod Seal) | 80 | 100 | 12 | 13 |
| 144 | HR002(Rod Seal) | 85 | 100 | 9 | 10 |
| 145 | HR002(Rod Seal) | 85 | 95 | 6 | 7 |
| 146 | HR002(Rod Seal) | 85 | 95 | 11.4 | |
| 147 | HR002(Rod Seal) | 85 | 100 | 9 | 10 |
| 148 | HR002(Rod Seal) | 85 | 100 | 10 | 11 |
| 149 | HR002(Rod Seal) | 85 | 100 | 11.8 | 12.5 |
| 150 | HR002(Rod Seal) | 85 | 105 | 12 | 13 |
| 151 | HR002(Rod Seal) | 90 | 105 | 9 | 10 |
| 152 | HR002(Rod Seal) | 90 | 105 | 10 | 11 |
| 153 | HR002(Rod Seal) | 90 | 105 | 11.4 | 12.5 |
| 154 | HR002(Rod Seal) | 90 | 105 | 11.8 | 12.5 |
| 155 | HR002(Rod Seal) | 90 | 105 | 12 | 13 |
| 156 | HR002(Rod Seal) | 90 | 110 | 12 | 13 |
| 157 | HR002(Rod Seal) | 90 | 110 | 15 | 16 |
| 158 | HR002(Rod Seal) | 92 | 107 | 11.5 | 12.5 |
| 159 | HR002(Rod Seal) | 95 | 110 | 9 | 10 |
| 160 | HR002(Rod Seal) | 95 | 110 | 10 | 11 |
| 161 | HR002(Rod Seal) | 95 | 115 | 12 | 13 |
| 162 | HR002(Rod Seal) | 100 | 115 | 9 | 10 |
| 163 | HR002(Rod Seal) | 100 | 115 | 10 | 11 |
| 164 | HR002(Rod Seal) | 100 | 115 | 11.4 | 12.5 |
| 165 | HR002(Rod Seal) | 100 | 115 | 12 | 13 |
| 166 | HR002(Rod Seal) | 100 | 120 | 12 | 13 |
| 167 | HR002(Rod Seal) | 100 | 120 | 14.5 | 16 |
| 168 | HR002(Rod Seal) | 100 | 125 | 15 | 16 |
| 169 | HR002(Rod Seal) | 105 | 120 | 9 | 10 |
| 170 | HR002(Rod Seal) | 105 | 120 | 10 | 11 |
| 171 | HR002(Rod Seal) | 105 | 125 | 12 | 13 |
| 172 | HR002(Rod Seal) | 105 | 125 | 14.5 | 16 |
| 173 | HR002(Rod Seal) | 110 | 118 | 11.5 | |
| 174 | HR002(Rod Seal) | 110 | 120 | 11.5 | 12.5 |
| 175 | HR002(Rod Seal) | 110 | 125 | 9 | 10 |
| 176 | HR002(Rod Seal) | 110 | 125 | 10 | 11 |
| 177 | HR002(Rod Seal) | 110 | 130 | 12 | 13 |
| 178 | HR002(Rod Seal) | 110 | 130 | 14.5 | 16 |
| 179 | HR002(Rod Seal) | 112 | 125 | 9 | 10 |
| 180 | HR002(Rod Seal) | 115 | 130 | 9 | 10 |
| 181 | HR002(Rod Seal) | 115 | 135 | 12 | 13 |
| 182 | HR002(Rod Seal) | 120 | 135 | 9 | 10 |
| 183 | HR002(Rod Seal) | 120 | 140 | 12 | 13 |
| 184 | HR002(Rod Seal) | 120 | 140 | 14.5 | 16 |
| 185 | HR002(Rod Seal) | 125 | 140 | 9 | 10 |
| 186 | HR002(Rod Seal) | 125 | 145 | 12 | 13 |
| 187 | HR002(Rod Seal) | 125 | 145 | 14.5 | 16 |
| 188 | HR002(Rod Seal) | 130 | 145 | 9 | 10 |
| 189 | HR002(Rod Seal) | 130 | 150 | 12 | 13 |
| 190 | HR002(Rod Seal) | 130 | 150 | 14.5 | 16 |
| 191 | HR002(Rod Seal) | 135 | 145 | 11.5 | 12.5 |
| 192 | HR002(Rod Seal) | 135 | 150 | 9 | 10 |
| 193 | HR002(Rod Seal) | 140 | 155 | 9 | 10 |
| 194 | HR002(Rod Seal) | 140 | 160 | 12 | 13 |
| 195 | HR002(Rod Seal) | 140 | 160 | 14.5 | 16 |
| 196 | HR002(Rod Seal) | 150 | 160 | 11 | 13 |
| 197 | HR002(Rod Seal) | 150 | 165 | 9 | 10 |
| 198 | HR002(Rod Seal) | 150 | 170 | 14.5 | 16 |
| 199 | HR002(Rod Seal) | 160 | 170 | 11 | |
| 200 | HR002(Rod Seal) | 160 | 170 | 11.5 | 12.5 |
| 201 | HR002(Rod Seal) | 160 | 170 | 14.5 | 16 |
| 202 | HR002(Rod Seal) | 160 | 175 | 9 | 10 |
| 203 | HR002(Rod Seal) | 160 | 175 | 12 | 13 |
| 204 | HR002(Rod Seal) | 160 | 180 | 14.5 | 16 |
| 205 | HR002(Rod Seal) | 170 | 190 | 14.5 | 16 |
| 206 | HR002(Rod Seal) | 180 | 200 | 14.5 | |
| 207 | HR002(Rod Seal) | 185 | 195 | 11.5 | 12.5 |
| 208 | HR002(Rod Seal) | 200 | 220 | 12 | 13 |
| 209 | HR002(Rod Seal) | 200 | 220 | 14.5 | 16 |
| 210 | HR002(Rod Seal) | 210 | 222 | 12.5 | 13.5 |
| 211 | HR002(Rod Seal) | 210 | 230 | 14.5 | |
| 212 | HR002(Rod Seal) | 240 | 260 | 14.5 | |
| 213 | HR002(Rod Seal) | 85 | 95 | 11.4 | |
| 214 | HR002(Rod Seal) | 150 | 160 | 13 | |
| 215 | HR002(Rod Seal) | 185 | 195 | 11 | |
| 216 | HR002(Rod Seal) | 85 | 100 | 12 |
